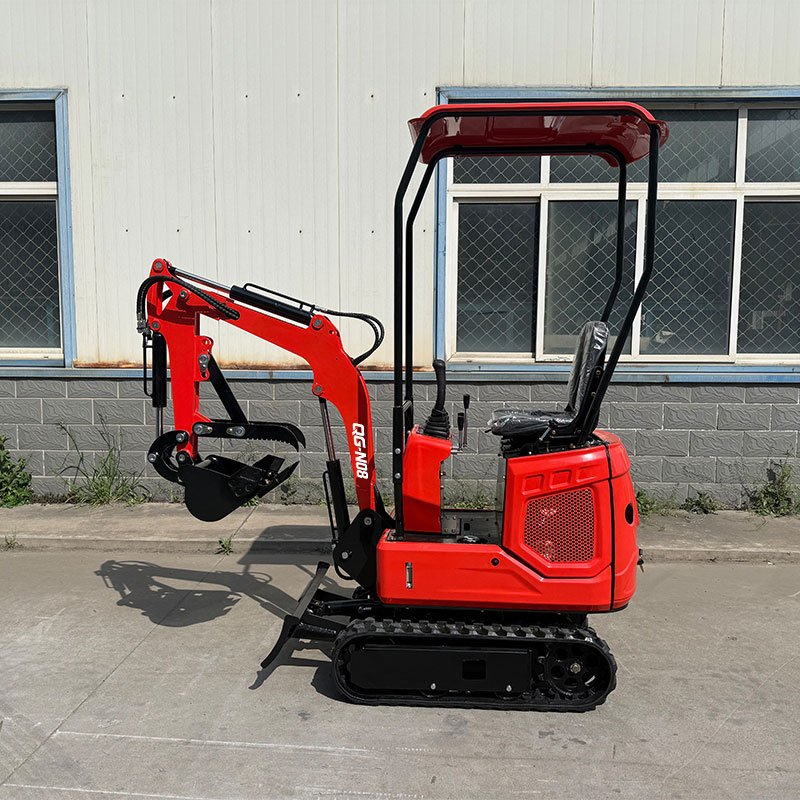

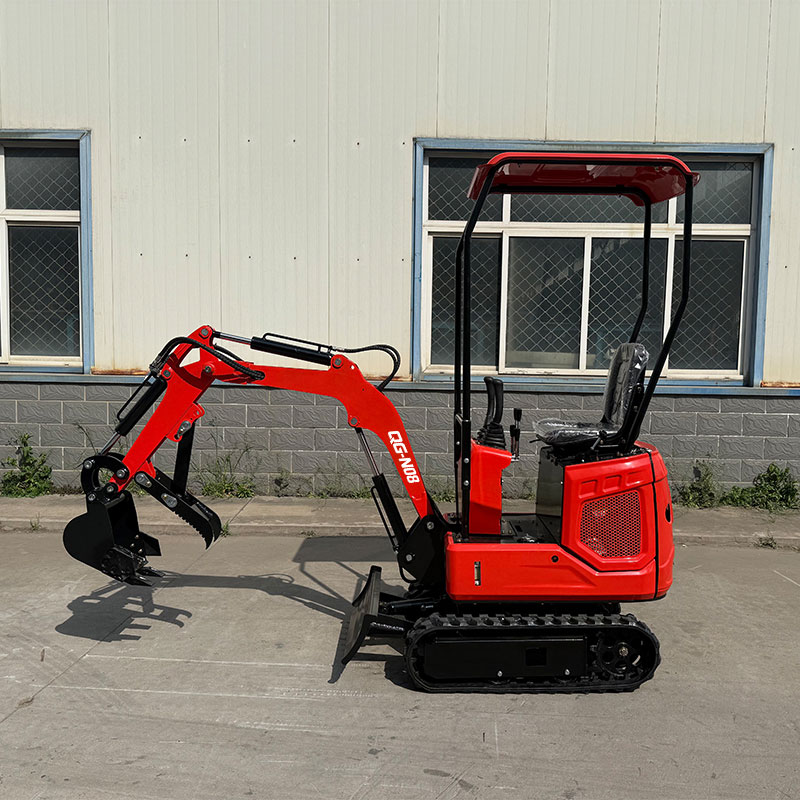

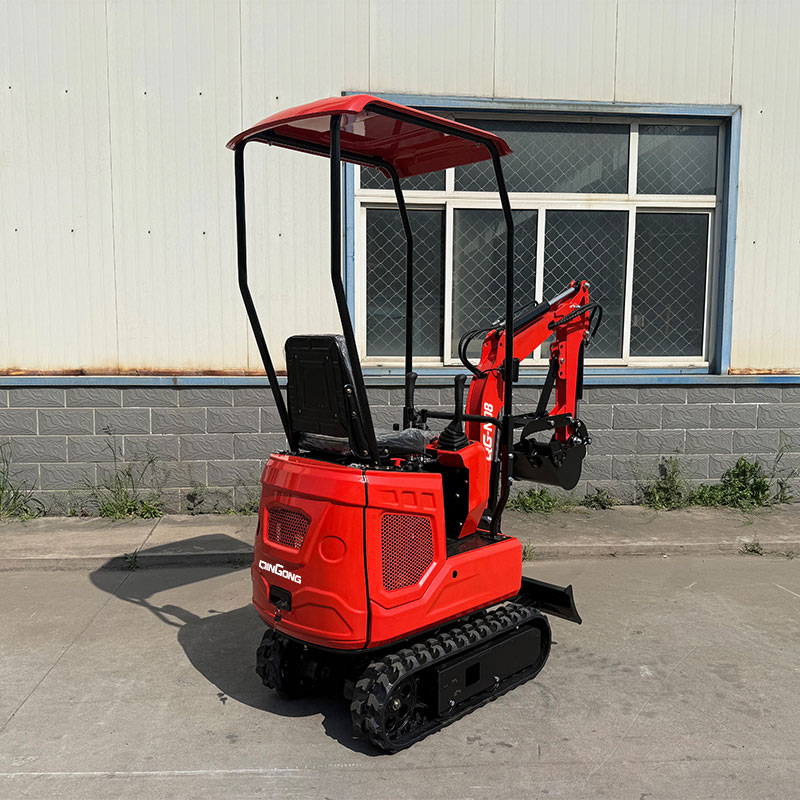

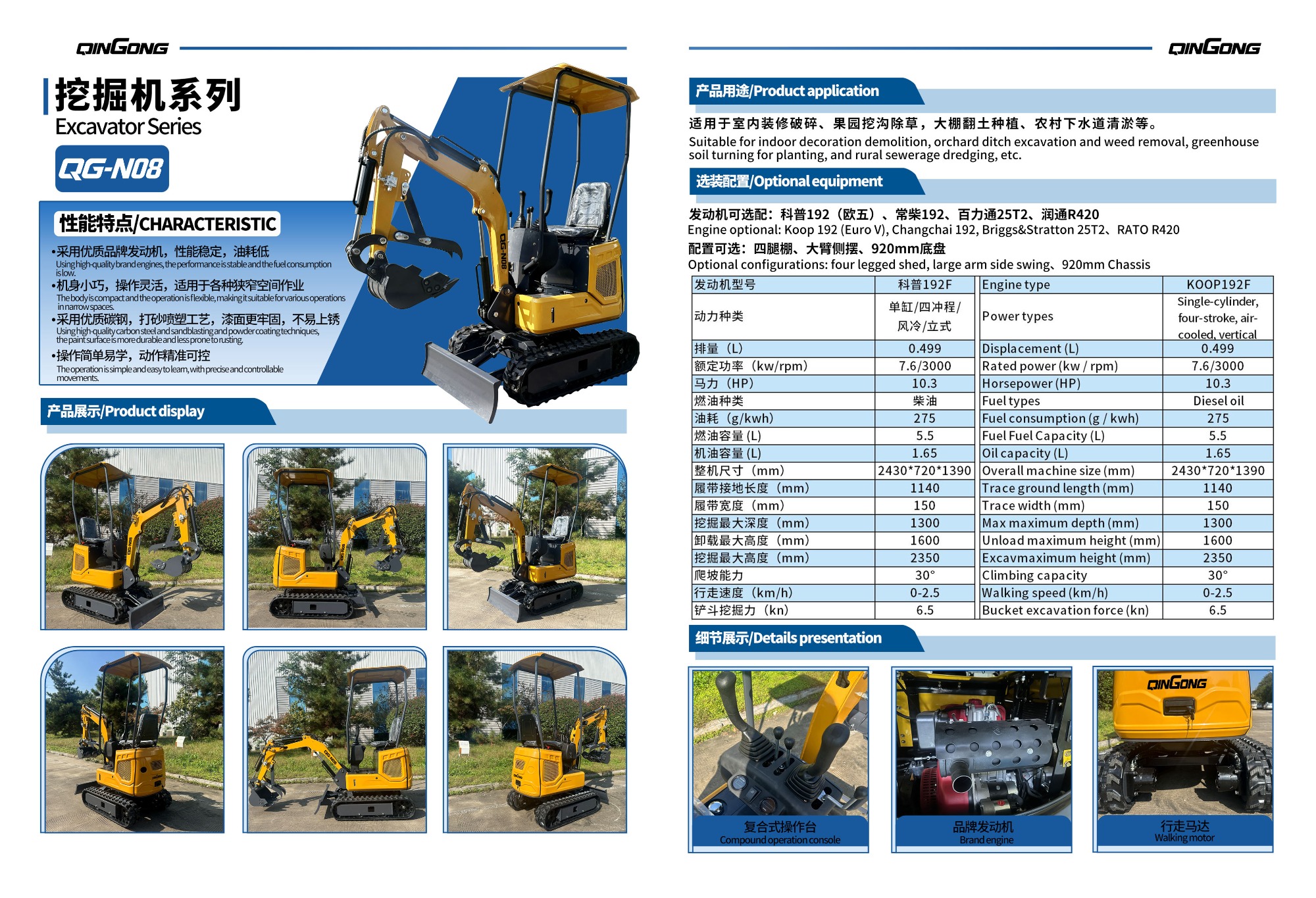

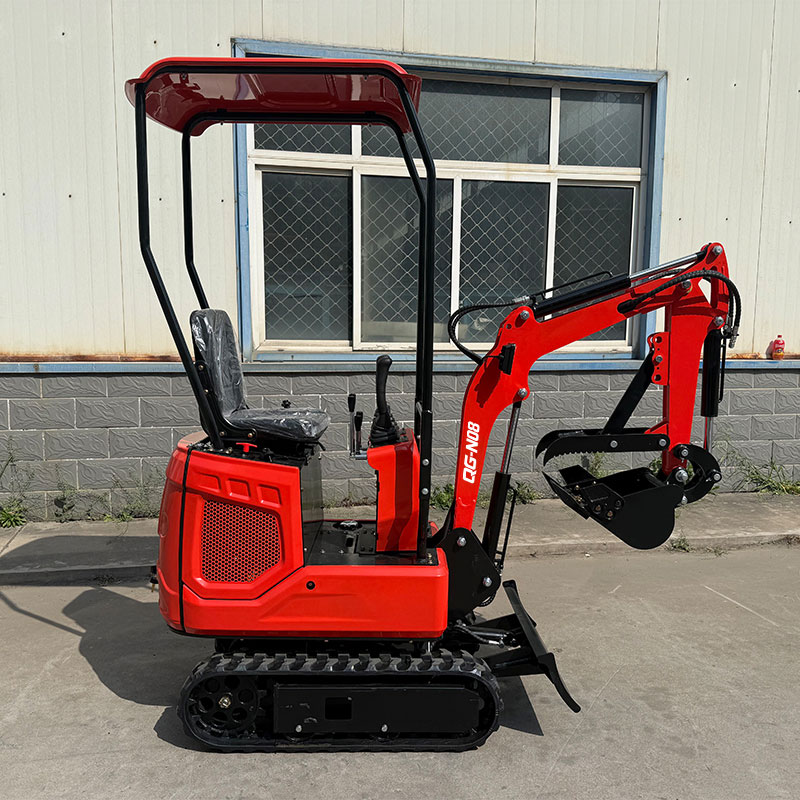

QINGONG QG-N08 MINI EXCAVATOR
Engine Model KOOP 192F
Engine Type Single-cylinder, four-stroke, air-cooled, vertical
Displacement 0.499 L
Rated Power 7.6 kW / 3000 rpm
Horsepower 10.3 HP
Fuel Type Diesel
Fuel Consumption 275 g/kWh
Fuel Tank Capacity 5.5 L
Oil Capacity 1.65 L
Overall Machine Size 2430 × 720 × 1390 mm
Track Ground Length 1140 mm
Track Width 150 mm
Max. Digging Depth 1300 mm
Max. Dumping Height 1600 mm
Max. Digging Height 2350 mm
Gradeability 30°
Travel Speed 0–2.5 km/h
Bucket Digging Force 6.5 kN
