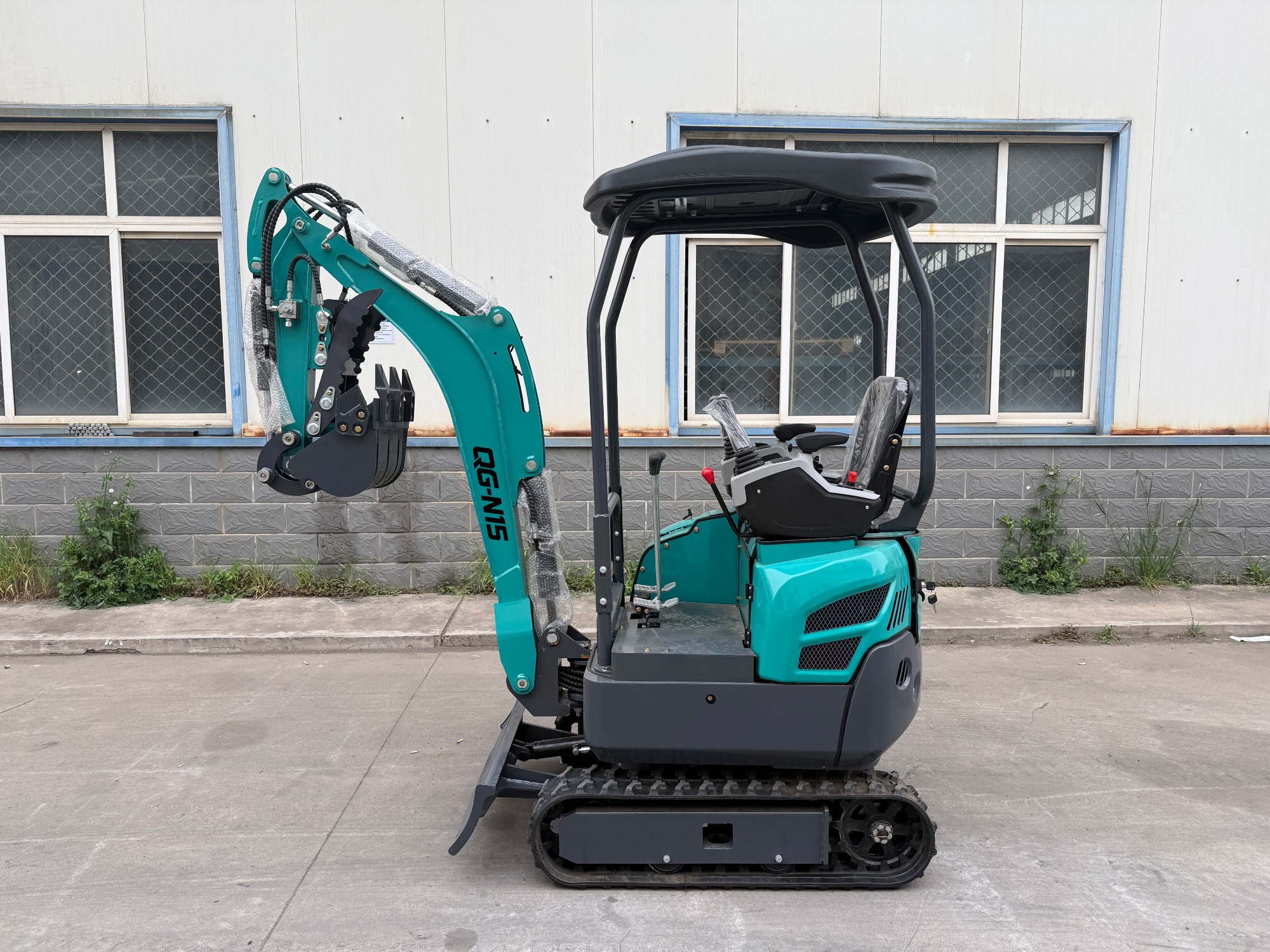

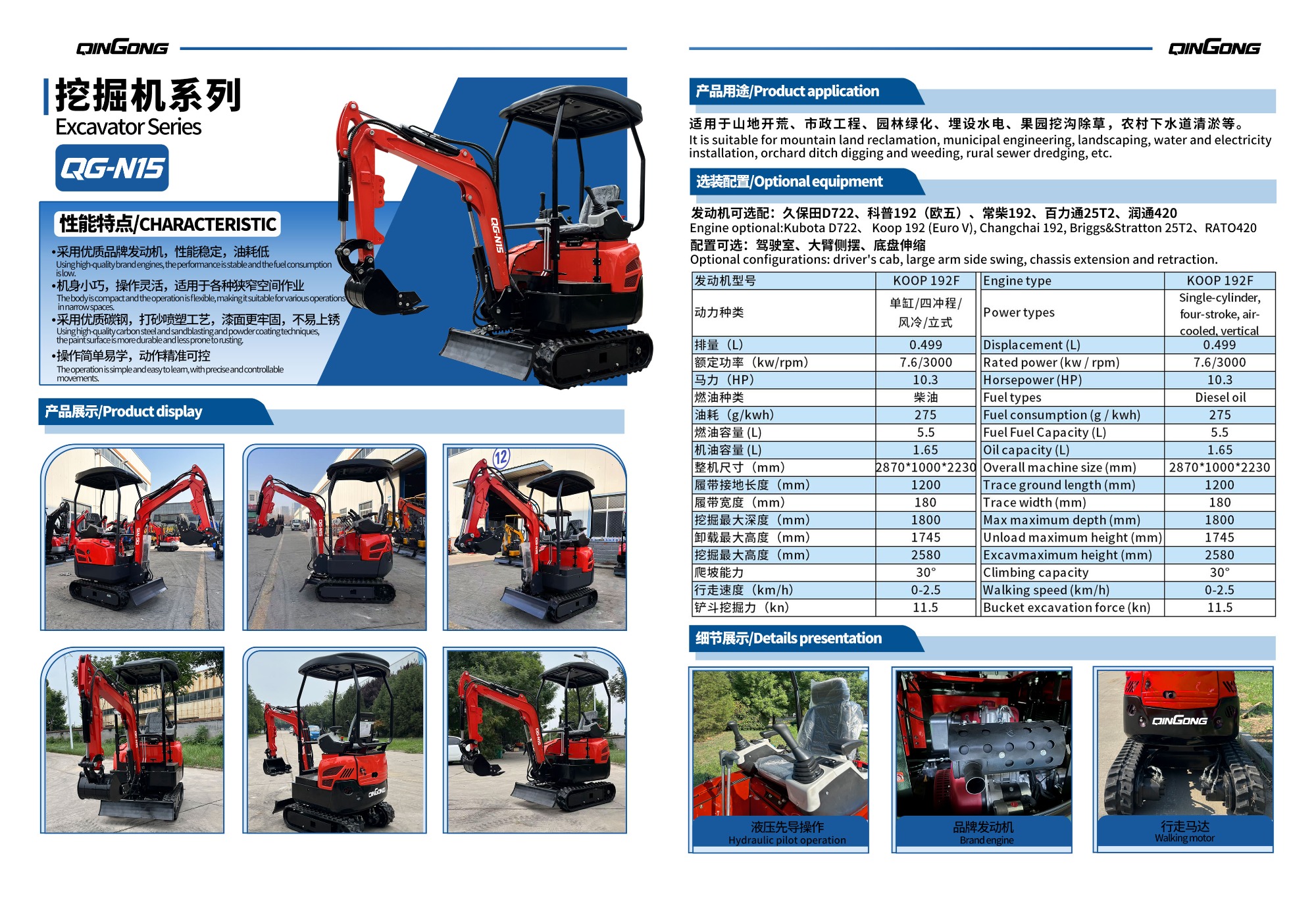

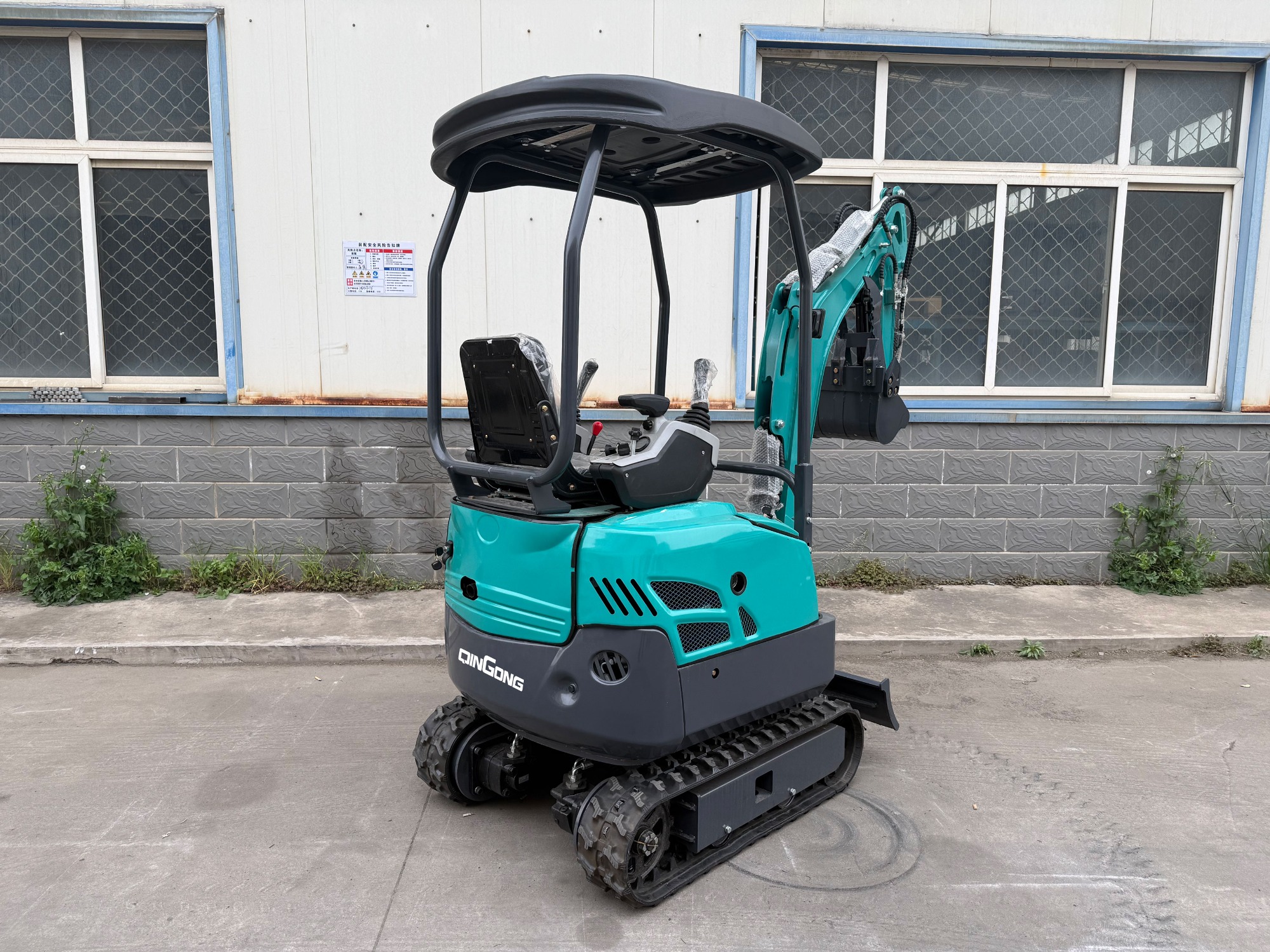

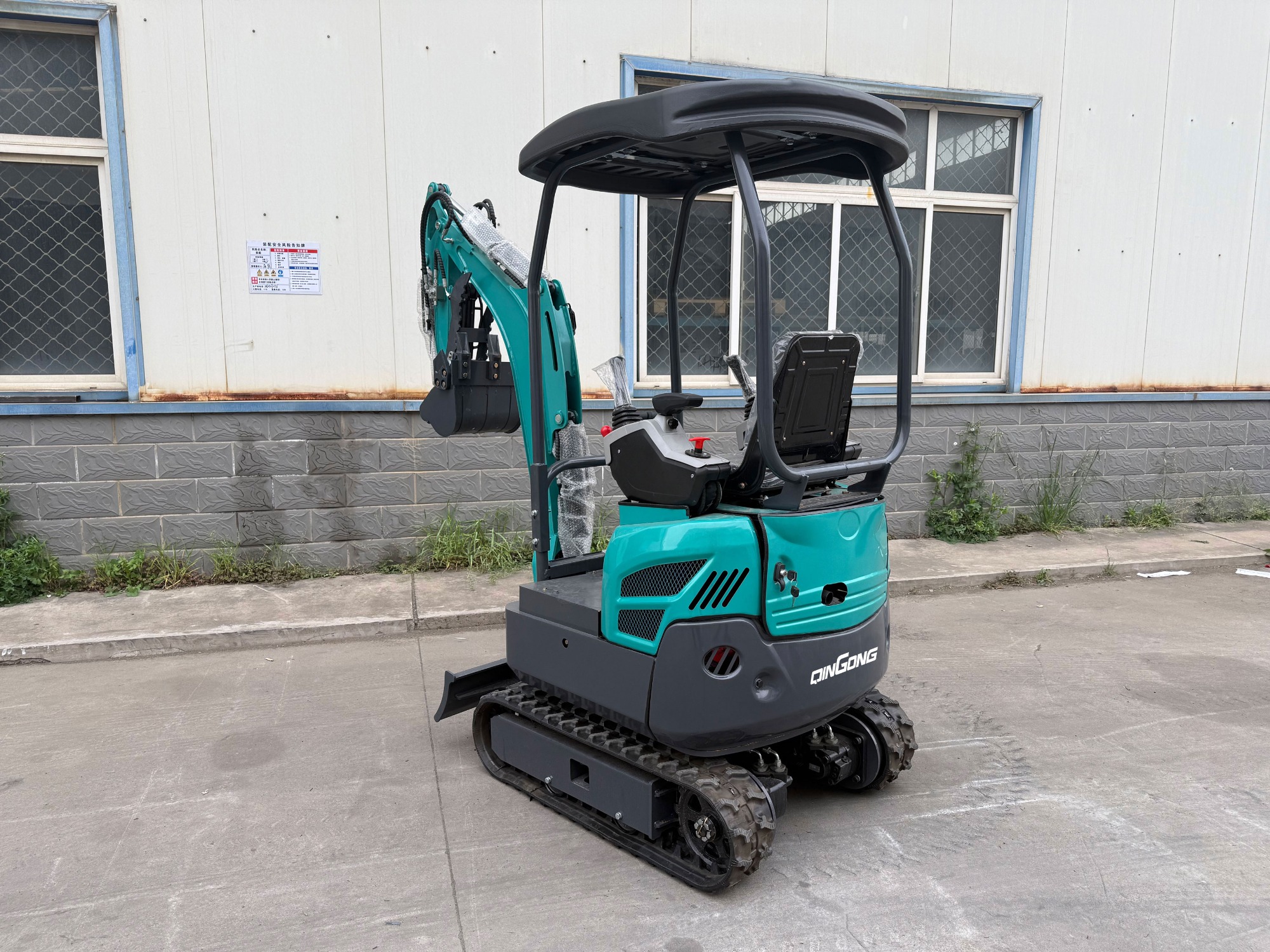

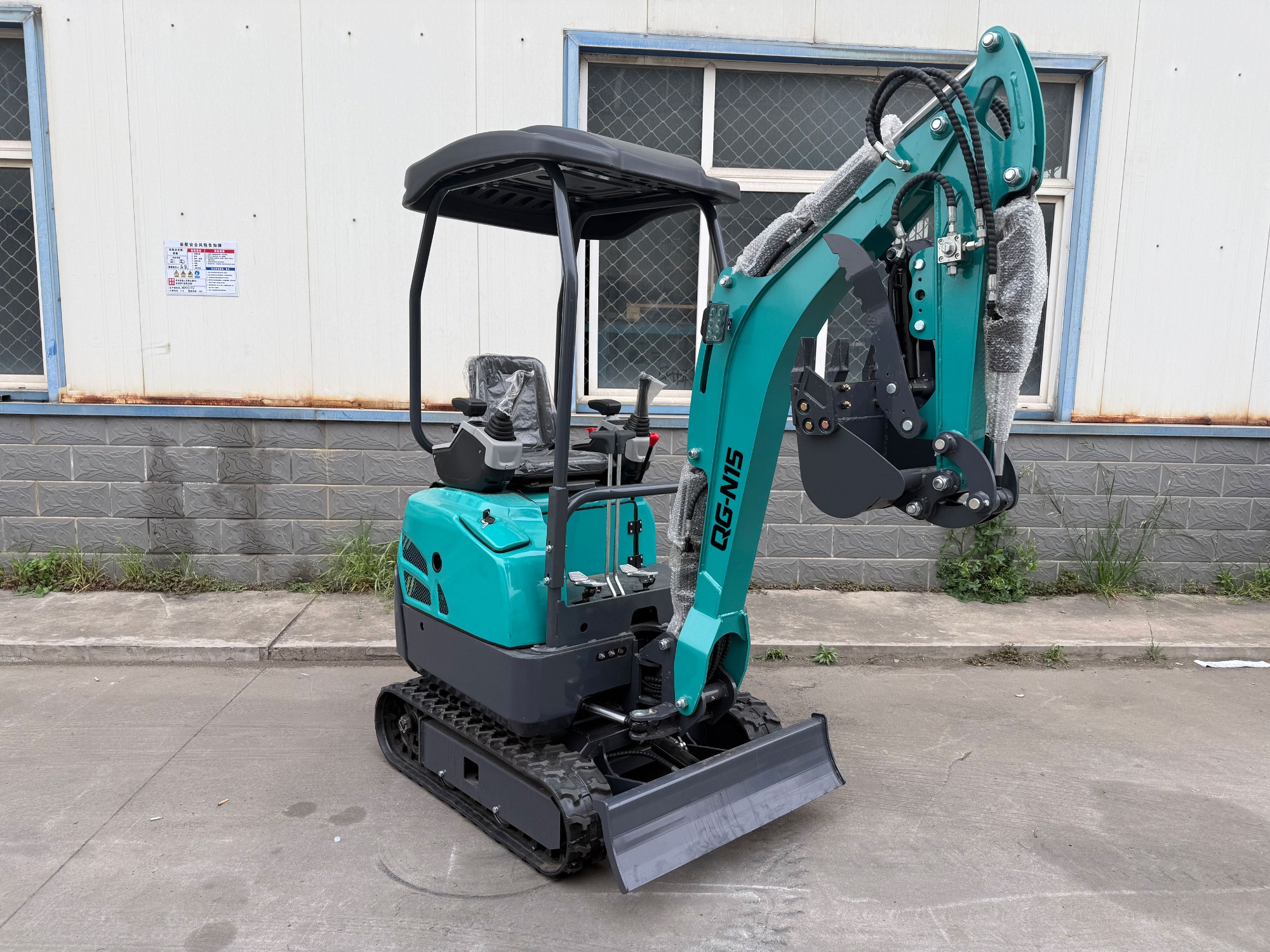

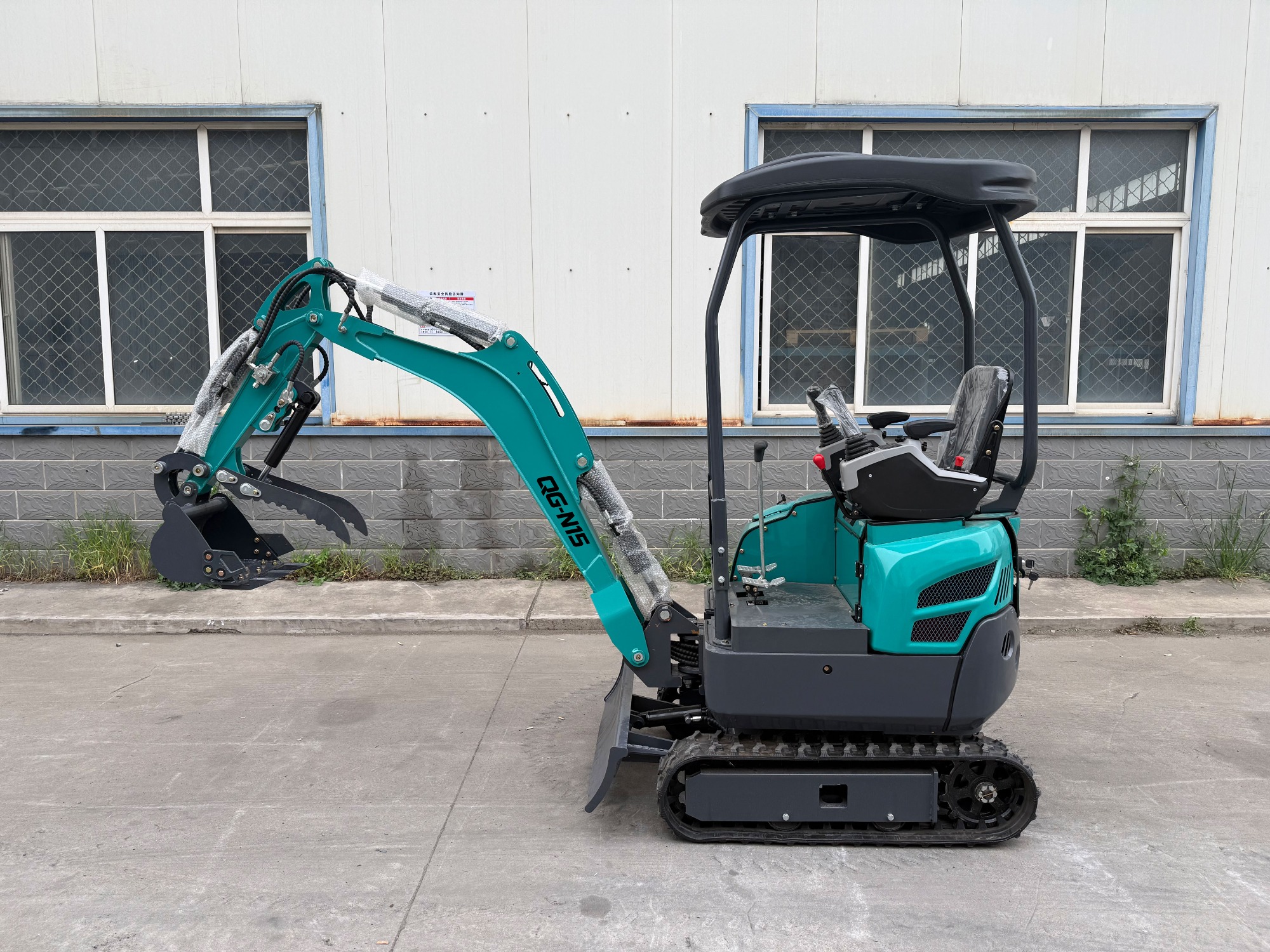

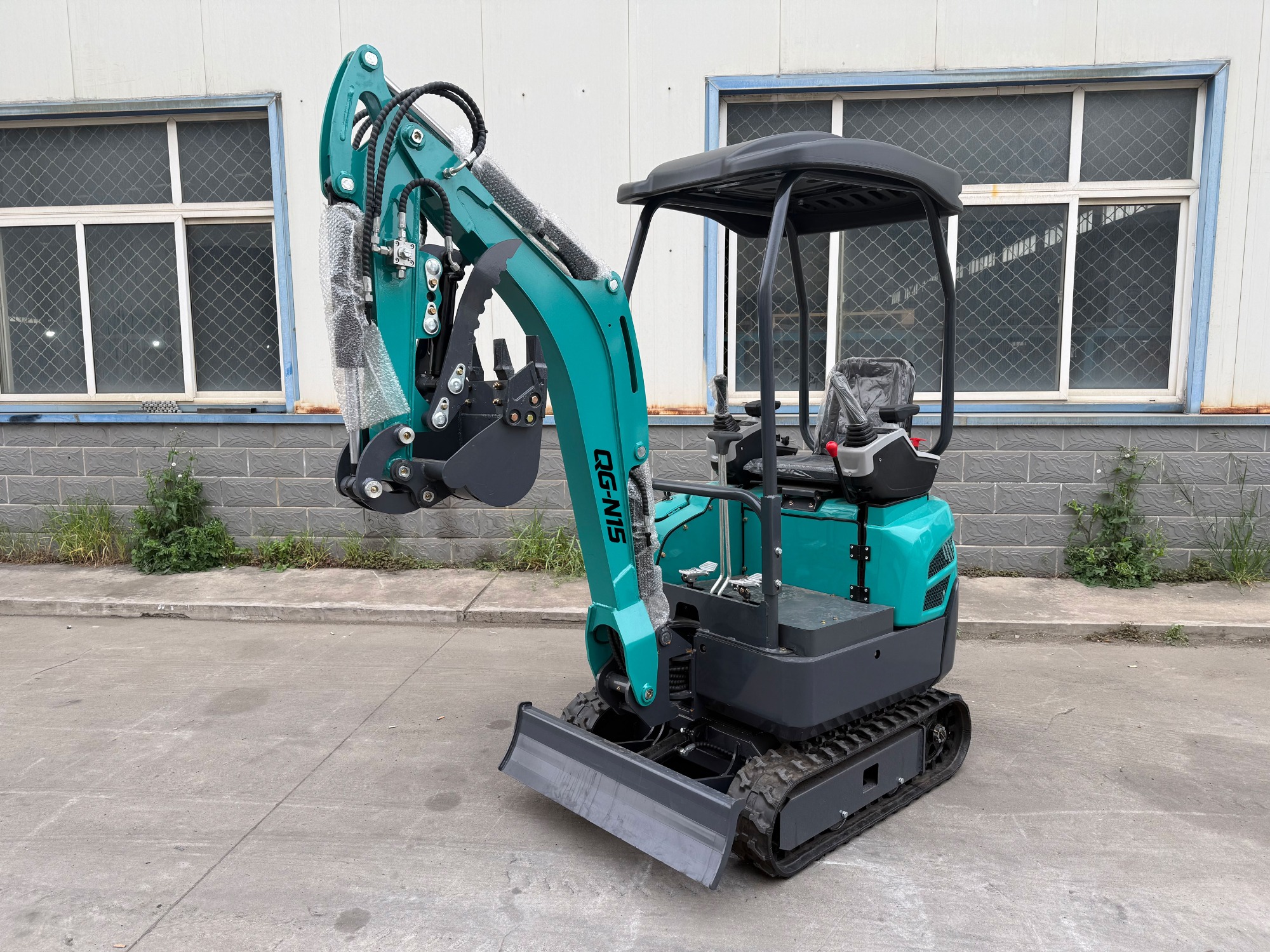

QINGONG QG-N15 MINI EXCAVATOR
Engine Model KOOP 192F
Engine Type Single-cylinder, 4-stroke, air-cooled, vertical
Displacement 0.499 L
Rated Power 7.6 kW / 3000 rpm
Horsepower 10.3 HP
Fuel Type Diesel
Fuel Consumption 275 g/kWh
Fuel Tank Capacity 5.5 L
Engine Oil Capacity 1.65 L
Overall Dimensions 2870 × 1000 × 2230 mm
Track Ground Length 1200 mm
Track Width 180 mm
Max. Digging Depth 1800 mm
Max. Dumping Height 1745 mm
Max. Digging Height 2580 mm
Gradeability 30°
Travel Speed 0–2.5 km/h
Bucket Digging Force 11.5 kN
